Syndent Metal Grinding Drill Bit Manufacturing Expert
- More than 11 years of manufacturing experience
- Manufacture your metal grinding drill bit in advanced CNC machine
- The best joint between sharpness and durable tool life
- Fast dispatch within 1 week against your regular orders

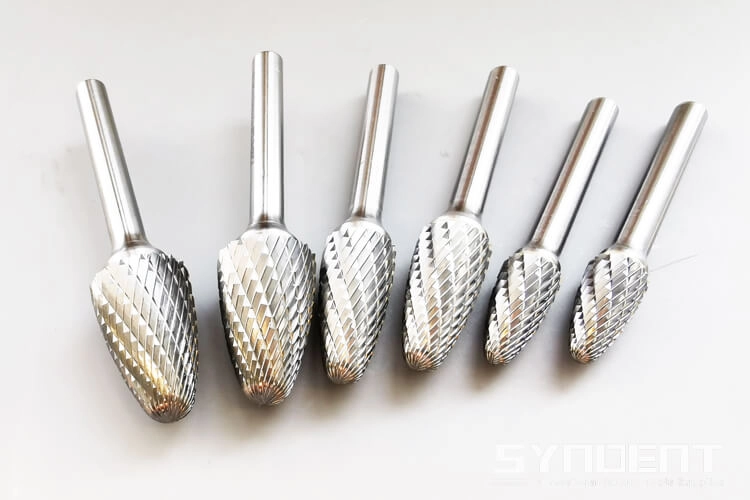

Syndent Metal Grinding Drill Bit
Syndent has for the past 11 years, specialized in producing magnificent cutting tools we all know as metal grinding drill bit.
Not only do belong to a list of Chinese pioneer companies that initiated CNC machines. Syndent owns sets of them totaling to 40 advanced machines. Syndent metal grinding drill bit comes as one of many products we develop in our fastest and accurate machines.
Syndent supplies highly fabricated die grinder bits, brittle and very durable which you handily apply on your projects.
Our tungsten carbide burr bits made from heavy material adequately can drill materials of all nature. Syndent helps in transforming your business through quality assurance of our metal grinding drill bit.

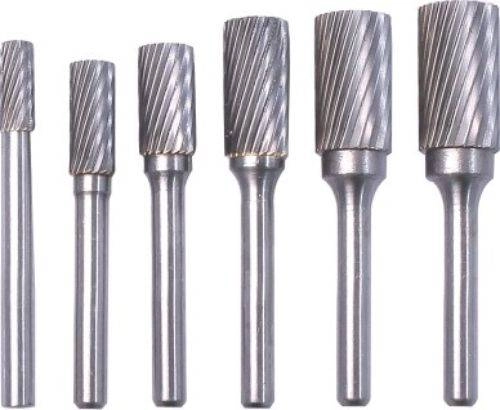

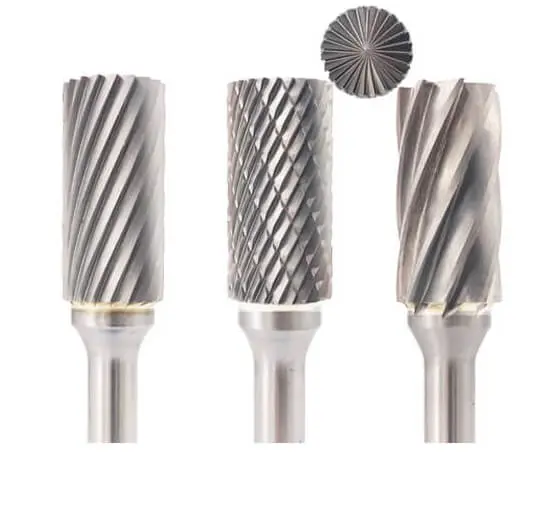

Cylinder metal grinding drill bit is ideal for contour finishing, flat surface removal.

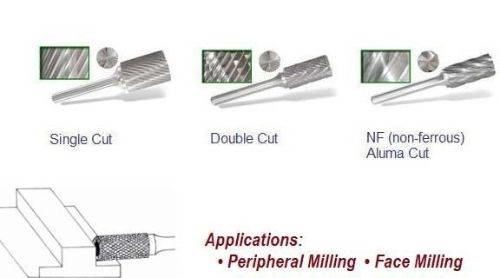

Cylinder with end cut metal grinding drill bit is suitable for removal contour and right-angled corners

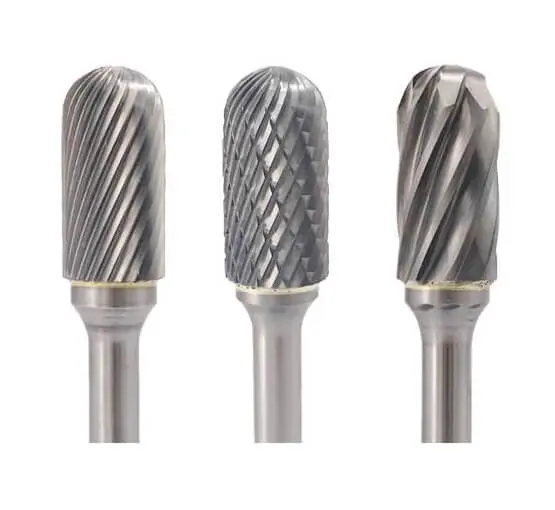

Cylinder with radius end metal grinding drill bit is suitable for processing contour and arc surface at a certain angle

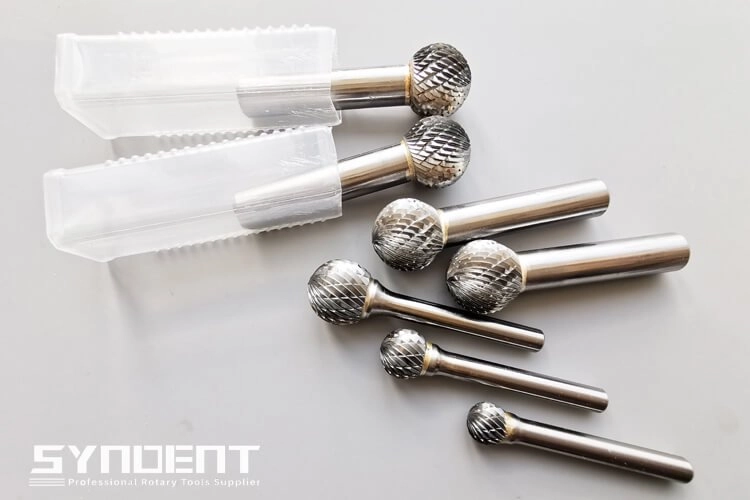

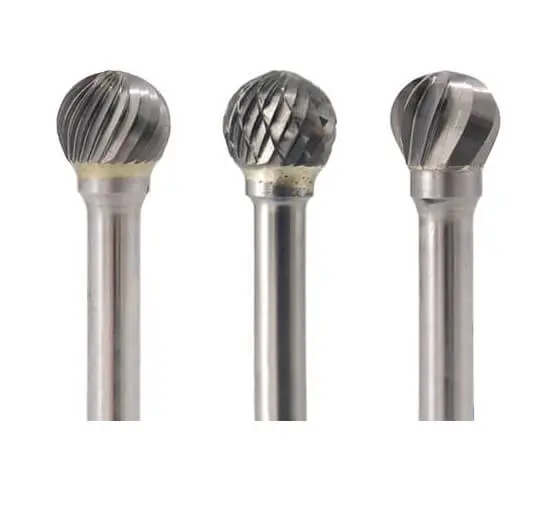

Ball shape metal grinding drill bit is good for machining round edge and end pre-processing before brazing

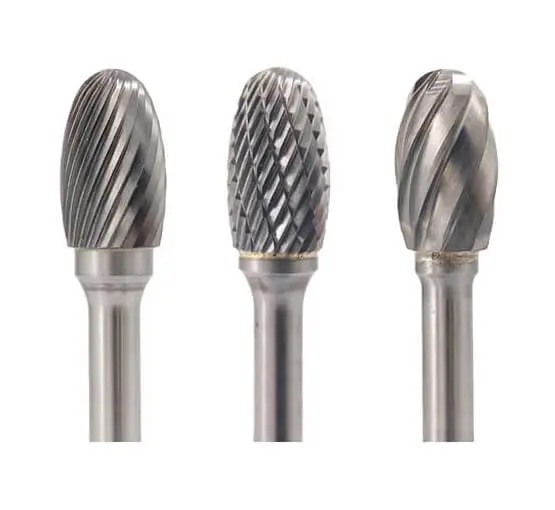

Oval shape metal grinding drill bit is suitable for round edge removal

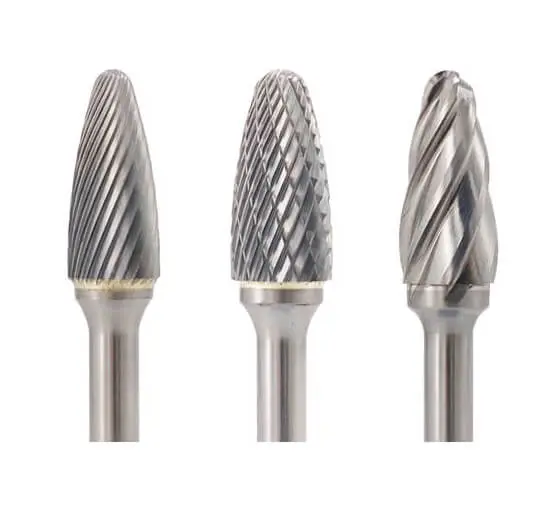

Tree with radius end metal grinding drill bit is perfect for grinding round edge in long and narrow positions

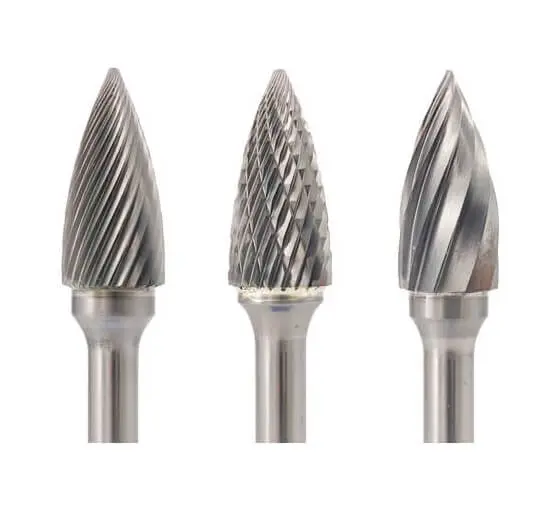

Tree with pointed end metal grinding drill bit is used for machining round arc contour in long and narrow places

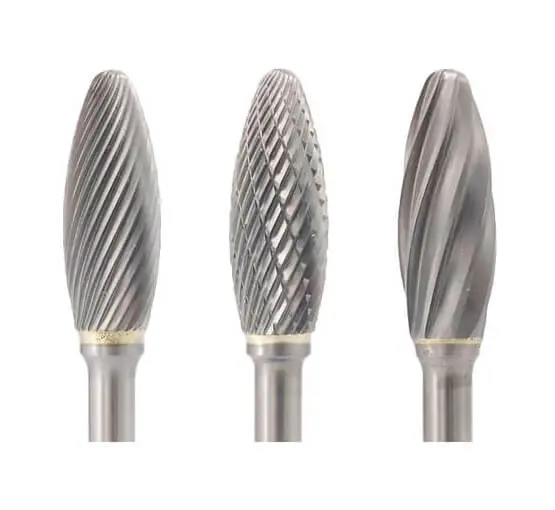

Flame shape metal grinding drill bit is good at round edge machining

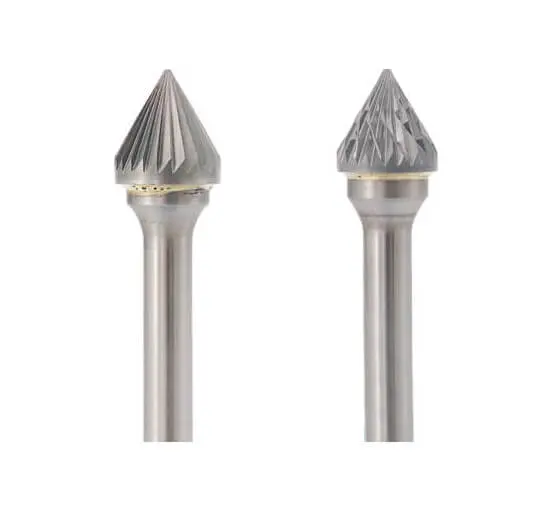

Cone shape metal grinding drill bit functions like a countersink. Suitable for chamfering inner hole

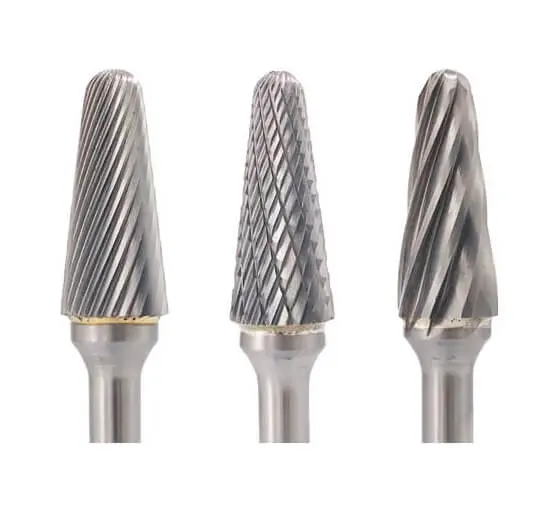

Taper with radius end metal grinding drill bit is widely used for round contour removal in narrow positions, and surface machining
Taper with pointed end metal grinding drill bit is suitable for narrow position deburring and counter surface machining

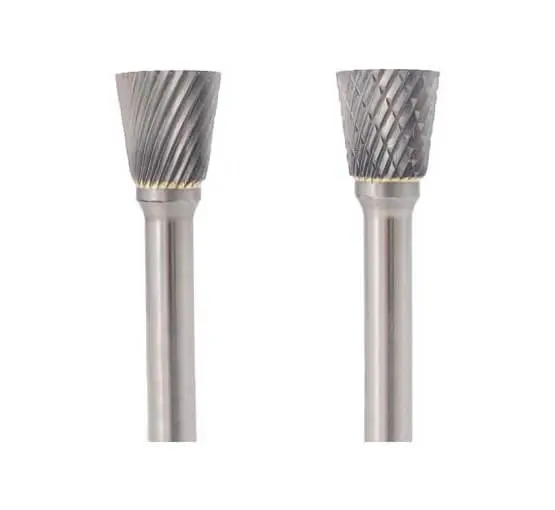

Inverted cone metal grinding drill bit is suitable for rear-side chamfering from the inner side.
Why Syndent Metal Grinding Drill Bit
Syndent builds metal shaping bits mainly from heavy raw materials consisting of tungsten carbide. Commonly known as cemented carbide, tungsten carbide has two elements: tungsten and carbon. Both materials can supply our die grinder with the greatest density and hardness, slightly like diamond.
Syndent comes up with diverse shapes of metal grinding drill bit that extensively drills defined materials. You can seamlessly drill concrete and hard-to-drill materials.
The blend helps us furnish the best die grinder bits in the market for your domestic and industrial projects. Without hitch, you can drill tough metal, grind cast iron, deburr aluminum, cut hardened steel, etc. You perform most functions easily and very faster.
For over a decade, Syndent stands as a stable Company in research and experience in the development of first-class products. Under the management of three former staff at a state-owned enterprise, we boast of a steady enterprise structure.
Because of that, Syndent can promise you a strong supply chain. Furthermore, we fall in the category of earliest factories that came up with CNC machines to develop rotary files. Thus Syndent metal grinding drill bit you buy always appears top in the industry.

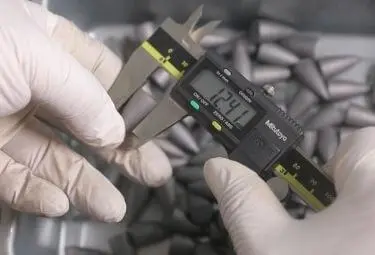

Syndent will check the raw material specifications of metal grinding drill bit before production.

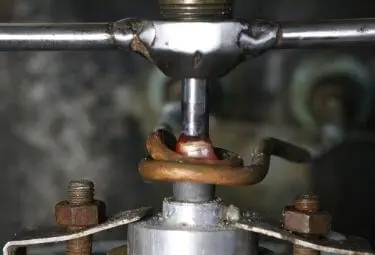

Syndent automatically brazes metal grinding drill bit with silver in a low temperature.

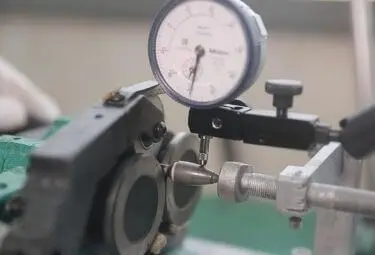

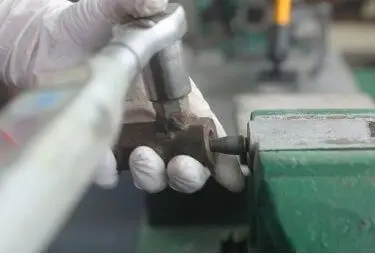

We must make the metal grinding drill bit jumping test after brazing. The tolerance is less than 0.1mm
Syndent examines the hardness of metal grinding drill bit shank after brazing and tests the bending strength

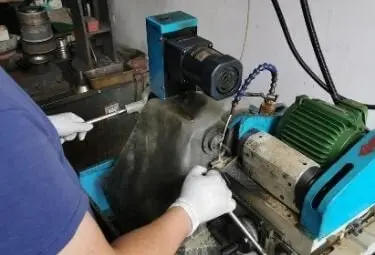

Solid metal grinding drill bit needs a shaping process from the carbide rod materials

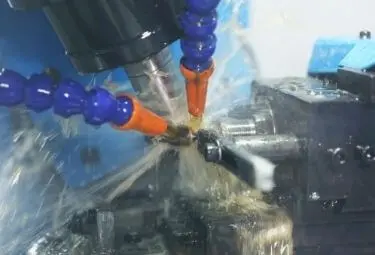

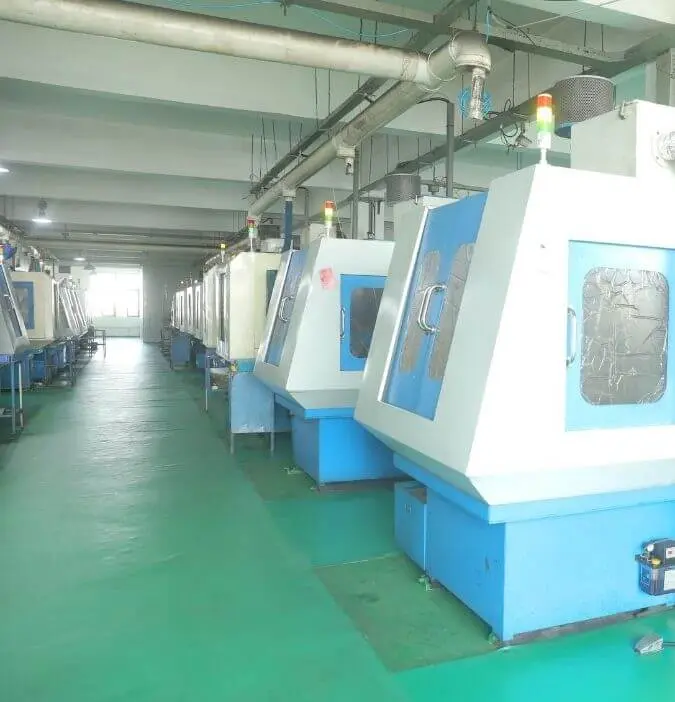

Syndent CNC grinds the metal grinding drill bit teeth after the tests approved

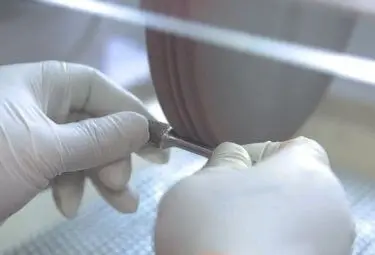

Syndent polishes the metal grinding drill bit shaft, and its brazing position

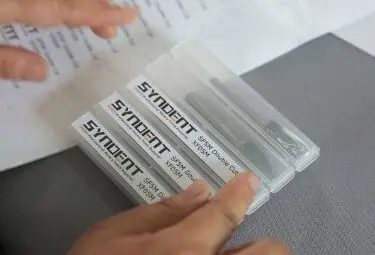

Syndent makes your logo on the metal grinding drill bit, and stick your own label on the case.
Your Best Supplier of Metal Grinding Drill Bit
Syndent buys tungsten raw materials from huge and leading suppliers that assure quality and delivery on time. The state-owned suppliers own the raw material mining fields and mine with advanced machines. Therefore, the quality of your metal grinding drill bit and delivery time remain stable.
Syndent imports tailstock from Japan which we check the hardness so that it conforms to 45 HRC hardness. This ensures a strong tool handle resistant to corrosion and breakage when used.
After welding the metal grinding drill bit, Syndent checks for head jump range and ensures it doesn’t surpass 10 wires. Important in managing work longer and so that cutting edge the product you ordered remains damage-free.
Syndent can dispense rich rotary burr for metal types, currently in the industry. We issue size range between 0.5mm and 30mm head diameters, from industrial use to dental field. This helps you have the free selection and grow your product line.
In case you wish to make Syndent metal grinding drill bit or want a quotation now, freely contact us. Syndent customer care representatives work 24/7 to listen and respond to queries quickly and satisfactorily.
Metal Grinding Drill Bit – An Ultimate FAQ Guide
Are you fed up with blunt grinding burrs?
Do you want to grind hard metal with your drill bit?
You have landed on an appropriate page. Syndent is an ultimate metal grinding drill bit manufacturer and supplier in China.
Let’s start reading to unveil the details regarding metal grinding bits.
What Is a Metal Grinding Drill Bit Used for?
You can use metal grinding drill bits for multiple purposes. As the name suggests, it helps to grind metals.
Moreover, it is appropriate for:
- Enlarging holes
Flexibility of Materials

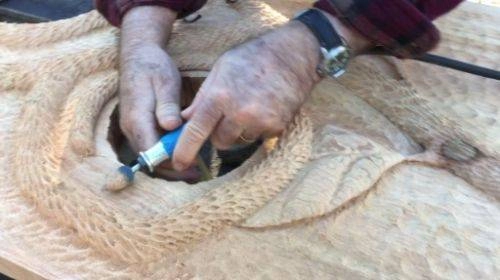

Are you a woodcarver?
Syndent metal grinding drill bit is as beneficial for you as for a metalworker. It means these multipurpose bits are an ideal choice to machine various surfaces.
Ferrous or non-ferrous metals, soft or hard materials, metal grinding bits can chip out every surface conveniently.
Flexibility of Materials

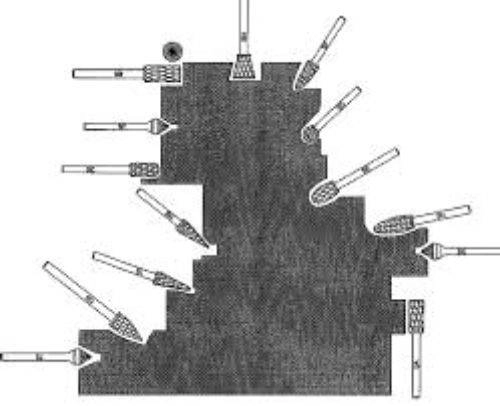

Versatility of Application
Syndent metal grinding drill bits provide you with the flexibility of materials and give you the freedom to work in various dimensions.
For instance, you are free to mill:
- Flat surfaces
- Round corners
- Arced surfaces
- Right angles
- Pointed holes
- Hard-to-reach areas
- Narrow and long spaces
How Does a Metal Grinding Bit for Cordless Drill Work?
One of the fantastic features a metal grinding drill bit possesses is its ability to fix in multiple rotary machines. It can fit in:
- Air-powered tools
- Cordless machines
- Electric powered machines
Let’s see how effectively a cordless drill may work?
Cordless Drill Machine
As the name suggests, you don’t need a cord to run this machine. It is operated with an attached battery. You can conveniently control the speed of your machine by pressing and releasing the trigger.
The more the pressure on the trigger, the greater will be the speed. A specific motor supplies energy to the rotary machine by converting electric power from the battery.

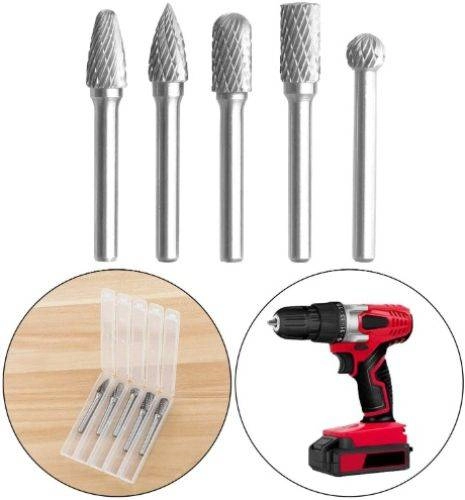

Cordless Drill Machines
Syndent metal grinding drill bit works as effectively in a cordless drill as in a corded machine.
With an appropriate speed, you can conveniently grind a specific area. However, the efficiency of the tool may suffer due to less charging.
Moreover, you cannot use a cordless drill for an extended time. It would help if you recharged the battery to continue your work.
Cordless drill machines are beneficial in situations like:
- Remote areas with no electricity
- It is handy, and you don’t need to worry about wires and switches
- Controllable speed
- It is lightweight and compact
- Easy-to-use with less fatigue and exertion
So, whichever machine you have, Syndent metal grinding drill bits are your must-have.

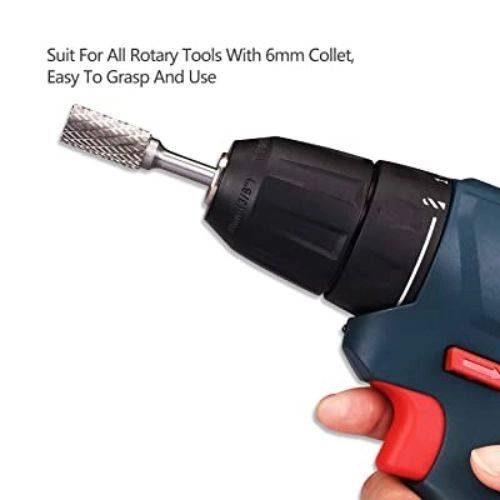

Easy-to-Use Grinding Bits
How Do You Grind Metal with a Drill Bit?

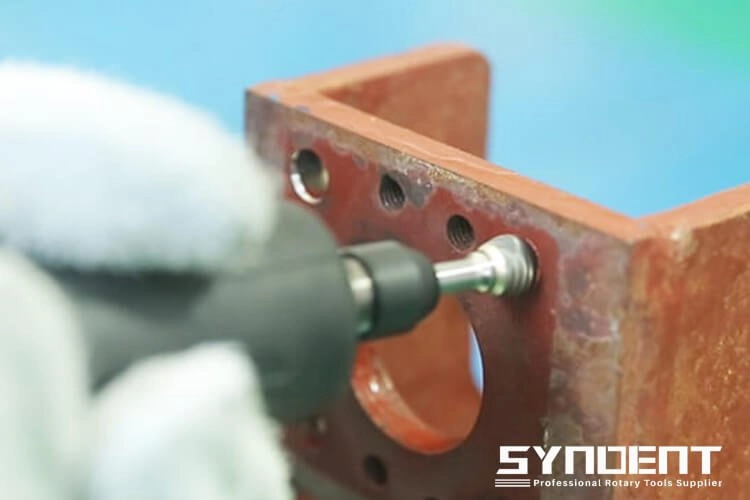

So, let’s see how a metal grinding drill bit works.
Take a sharp drill bit. More precisely, take a Syndent grinding bit.
Fix it well in the collet of your specific rotary machine.
Place your metal work piece on the table and ensure it is screwed properly to the bench.
Check the connections of your machine, whether it is an electric switch or an air hose. And if, you are using a cordless drill, make sure the battery is fully charged.
Now start the machine. Take a slow start. Put the rotating carbide burr on the surface of your metal piece.
As soon as the sharp flute teeth touch the surface, they chip out the metal chunks. The bit keeps rotating and chipping out excessive metal.
You don’t need to press the bit against the surface because Syndent metal grinding drill bits are sharp enough to cut the metal like butter.
Keep moving the rotating burr until the whole surface is ground.
- The unnecessary force put on the rotary file may damage the flute’s sharpness.
- Speed is vital while grinding. You must start at a slow pace but increase the speed gradually as you move along. Moreover, keep working within the recommended speed limit.
- Most importantly, the flute cut, you choose, plays a vital role. Syndent offers a wide range of flute cuts like:
Flute Cuts for Rapid Stock Removal
- Aluminum cut
- Single cut
- Coarse cut
- Foundry cut

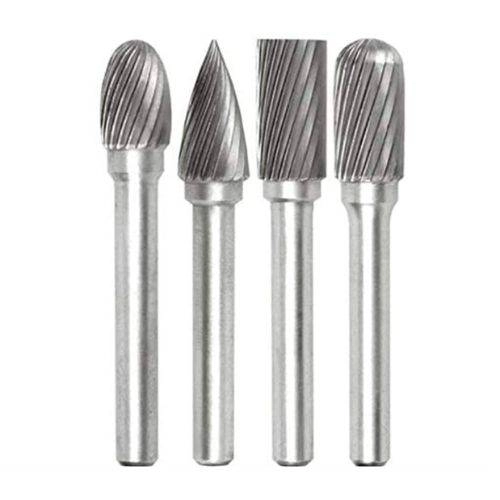

Single Cut Metal Grinding Drill Bit
Flute Cuts for Fine Finishing
- Chipbreaker cut
- Fine single cut
- Diamond cut
- Double cut
What Are Numerous Metal Grinding Drill Attachments?
Variable tools are available in the market to grind metal. The tools that you can use as an attachment with a drill machine are:
- Grinding wheels
- Metal grinding drill bits
Grinding wheels have hole in the middle. You can use a mandrel to connect wheel to the collet. This mandrel is called a drill arbor adapter.
The mandrel is attached to the grinding wheel with a screw.
Tightly fix the screw. Now your wheel is ready to mount on the drill machine. Fix it in the drill chunk and start grinding.
Variable-sized grinding wheels are available in the market. Mostly, they are used to grind larger areas.

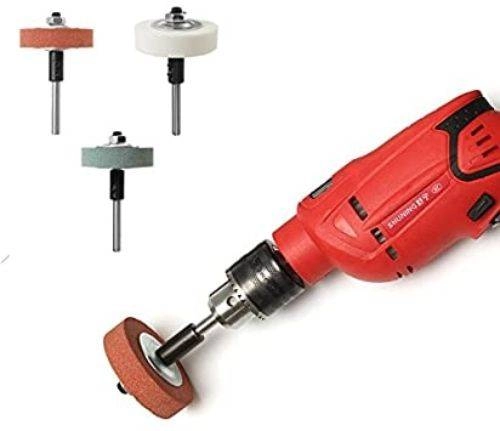

Grinding Wheels in a Drill Machine
Metal Grinding Drill Bits
Drill bits are an ideal solution to grind corners, small, and narrows areas. You can get them in variable shapes and sizes.
You can easily fix the shank into the drill collet to grind metal.
Generally, grinding drill bits are of three types:
- Stone drill bits
- HSS burrs
- Tungsten carbide drill bits for metal
As the names suggest, different materials are used to make these metal grinding drill bits. Let’s see what the differences are.
What Is the Difference between a Metal Grinding Carbide Burr and Stone Drill Bit?
Both of these metal grinding drill bits are designed explicitly to smoothen a rough metal surface. Moreover, the two types are available in a wide variety.
However, they differ in many ways, like:
The difference in Raw Material
To manufacture metal grinding drill bits, tungsten carbide is used. Likewise, chemical compounds are used to create strong stone burrs.
Abrasives (like aluminum oxide) are used to create stone bits. After that, high-grade bonds are used to keep the abrasive grits strongly intact.
Stone Drill Bits
Cuts & Grits
In tungsten carbide metal grinding drill bits, the flutes have sharp cuts. These cuts are available in various patterns. Coarse and fine cuts determine the grinding results.
On the contrary, stone (aluminum oxide) files do not have cuts. In fact, they have grits on the flutes. Coarse, medium and fine grits help in aggressive and fine finishing.
Metal grinding drill bits (carbide bits) have a longer life span than stone bits. The sharp flutes retain their shape and sharpness even after aggressive grinding.
However, you may observe detrition in the stone burrs after excessive grinding.
What Is the Difference between a Grinding Wheel and Metal Grinding Drill Bit?
As mentioned earlier, wheels and bits are available as drill attachments. If, wheels can fulfil the grinding job, then what is the need to have metal grinding drill bits?
Shape & Sizes
The minimum diameter of a grinding wheel is 4.5”. It means, to grind spaces smaller than 4”, you need to have some other tools.
For this purpose, metal grinding drill bits are the best. Whether you are using an abrasive drill bit or carbide drill bit, you can conveniently grind hard-to-reach areas.
You can conveniently work on diversified areas with these multipurpose drill bits.
On the contrary, grinding wheels are more suitable for flat surfaces.
Abrasive Grinding Wheel
Grinding wheels are created with abrasives. Different types of chemical compounds are mixed with abrasive bonding to form grinding wheels.
The abrasive size and volume on the wheel differ. Some wheels have coarse while others have fine grits.
Coarse grits remove stock faster with less finished surface. Whereas, fine grits remove finer chunks, thus, leaving the surface smoother.
Besides the difference in size, abrasive metal grinding drill bits possess the same features. However, carbide drilling bits are made with the world’s strongest metal cobalt – tungsten carbide.
Can I Use a Metal Grinding Drill Bit to Cut Through Metal?
Syndent metal grinding drill bits are well-known for grinding, deburring, sanding, and polishing purposes.
Drill bits are not made to cut metal. Furthermore, cutting a metal sheet is not a piece of cake.
However, Syndent sharp, durable, and resilient metal grinding drill bits may cut various metals for you.
You can use burrs having aluminum cut, single cut, or coarse cut flutes. These flutes quickly remove heavy stock and help in the aggressive cutting.
However, you may not get smooth and neat cutting edges. But to overcome this problem, you can grind the edges with double cut, diamond cut, or fine single cut bits.
Syndent is always there to provide you with adequate solutions. Contact Syndent to get customized cuts, sizes, and shapes of your metal grinding drill bits as per your business requirement.
Can I Use a Drill As a Die Grinder?
Yes, why not?
Not only drill machines but many other handheld rotary tools can be used as die grinders. Like:
- Hobby tools
- Pneumatic grinders
Syndent metal grinding drill bits are available in variable shank sizes. The available diameters are 3mm, 6mm, and 9mm.
Furthermore, if the bit diameter does not match the collet size, you can use a collet adapter according to your bit diameter.
However, the speed of a drill machine differs from a die grinder. Die grinders work at comparatively high speed than drill machines.
So, it does not matter which device you have. Syndent gives you the flexibility to use metal grinding drill bits in multiple machines.
High Grade Metal Grinding Drill Bits

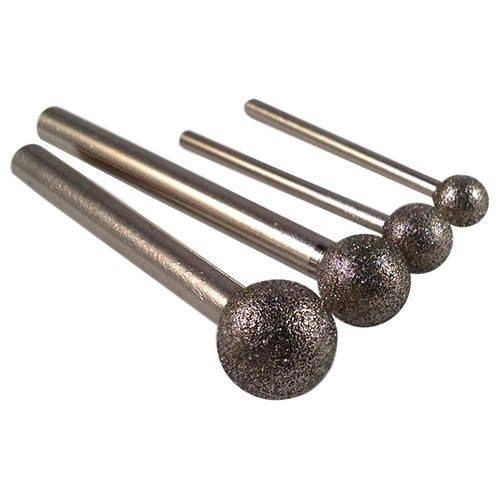

Can Diamond Burr Drill Bits Cut Through Metal?
Diamond metal grinding drill bits are known for creating holes in extremely hard materials like stone, glass, ceramics, etc.
It is not recommended to use diamond burr drill bits on soft metal. Metal (when ground) melts and clogs on the diamond burr.
However, you can cut through-hardened steel with diamond burrs.
Similarly, Syndent diamond cut drill bits are an ideal solution to grind, mill, deburr, and cut metal.
The coarse sharp flute cuts of the metal grinding drill bit chip away excessive material conveniently.
The diamond cut metal grinding burr removes small powder-like chunks. It not only grinds quickly but you experience a finely finished surface afterward.
Try Syndent diamond cut metal grinding drill bit and experience the easy and fine grinding.

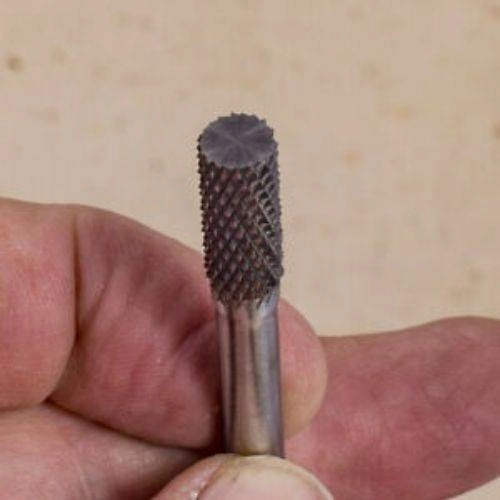

Diamond-Cut Metal Grinding Drill Bit
What Dremel Bit Can I Use on Metal?
When it comes to metalworking, you need to know, metals are of two types:
Some metals are soft like aluminum, while others are hard like steel. To get appropriate results on both surfaces, Dremel tungsten carbide burrs are the best.
These bits can carve, grind, deburr, and chamfer metal conveniently. However, if you are in search of an ideal and efficient metal grinding drill bit that matches Dremel bit, you have found it!
Syndent gives you high-quality, strong, and heat-resistant grinding burrs at competitive prices.

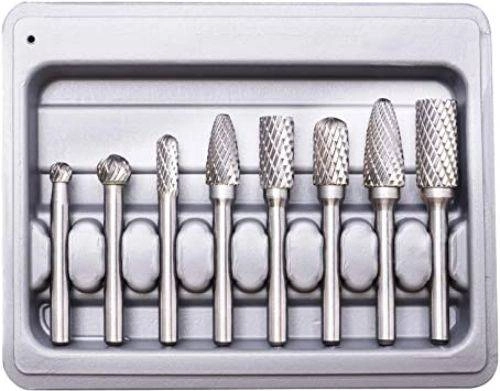

Strong Metal Grinding Drill Bits
Exemplary Qualities of Syndent Metal Grinding Drill Bits
The qualities a Syndent drilling file possesses are:
- Thermal conductivity
- Light weight
- Hard wearing
Let’s see how versatile Syndent metal grinding drill bits are?
These burrs are versatile in various ways, like:
- Versatility in application
- Versatility in shapes and sizes
Versatility in Application
Versatility in Application
Syndent carbide metal grinding drill bits are a must-have in your toolbox.
Because to whichever industry you belong you can show your skills with these burrs. Moreover, you can use Syndent grinding bits on various materials.
You can mill wood, metal, ceramics, glass, plastic, and many more.
Similarly, with a single bit, you can work on flat, curved, deep, and narrow spaces.
Versatility in Shapes and Sizes
Syndent is among the leading metal grinding drill bit manufacturers and suppliers in China. You may get numerous standard sizes and shapes at Syndent, like:
Furthermore, you can get a single-shaped metal grinding drill bit in variable cuts. For example, you may get a ball-shaped rotary file for metal in numerous flute cuts.
Choose a cut as per your job requirement.
Besides, these standard flute shapes you can also get custom-made drilling bits. You can give your demands to Syndent’s experienced and highly qualified engineers. Give them your demands and get high-rated customized burrs of your choice.

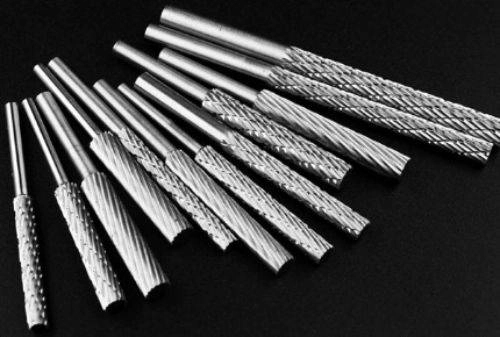

Customized Metal Grinding Drill Bit

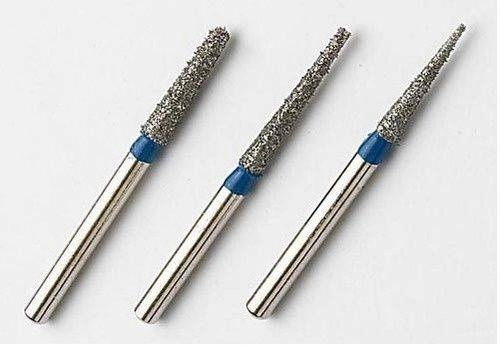

Why Are Some Metal Grinding Drill Bits Tipped with Diamond?
Some metal grinding drill bits are coated with diamond grits by using bonds. These are called the sintered or electroplated diamond drill bits.
What’s the Difference?
- Electroplated diamond drill bits use nickel as a bonding agent. Whereas, in sintered bits bonding matrix material is used at a very high temperature.
- Electroplated metal grinding drill bits are comparatively cheaper.
- Furthermore, electroplated diamond burrs have a short life. In contrast, sintered files last longer, as they have diamonds bonded together layer by layer.
Plated Diamond Burrs
Purpose of Diamond Coating
As diamond is the hardest material on earth, manufacturers, like Syndent, coat burrs with diamond to make them stronger.
Consequently, these diamond-coated metal grinding drill bits can cut extremely hard metals and materials. However, you must not use them on softer materials.
The main purpose of these files is to make or enlarge holes through hard materials. You can also carve, grind, shape, and deburr with these burrs.
Like tungsten carbide metal grinding drill bits, diamond-coated burrs are also available in variable sizes and shapes.
Flute diameter may range from 0.6mm – 50mm. Likewise, shank size varies from 1.6mm – 6mm.
Variable-Sized Diamond Burrs
Can I Use Metal Grinding Drill Bit As a Router?
First of all, you need to know, what is a router? And, what is its use?
A router is used on light materials. It is used to shape corners and edges, or to make grooves and joints.
Syndent gives you the flexibility to shape variable materials in various ways. Metal grinding drill bit can be used as a router.
Syndent fiberglass router bit is a flawless selection for grinding sophisticated edges and corners.
Similarly, Syndent metal grinding drill bit with fine cuts is suitable for light applications, where you need to remove minimal material.
Also, you can use Syndent ball-shaped or oval burr to contour rough edges.
Oval Shaped Metal Grinding Drill Bit
Do Metal Grinding Drill Bits Work on Concrete?
Tungsten carbide metal grinding drill bits are strong and durable. They are versatile, as they are not restricted to some specific material.
For instance, if you have a concrete surface and want to grind it, you can use a suitable burr for this purpose.
Choose an appropriate size and shape of your metal grinding drill bit. If you need to remove heavy stock, use aluminum cut flutes. For fine grinding, you can select double cut flute.
The sharp edges do not lose their sharpness or shape while working on hard materials. However, the RPM must be according to the material.
You must run your machine at the recommended speed as mentioned in the tool’s manual guide.
Sharp Metal Grinding Drill Bits
In How Many Sizes Can I Get Metal Grinding Drill Bits?
Metal grinding drill bits are available in an extensive range of sizes. You may find variety in the:
- Flute diameter
- Flute length
- Shank length
- Shank diameter
Mentioned below are some standard sizes.
The most commonly used flute diameters are:
- 25mm / 0.9”
- 16mm / 0.6”
- 12mm / 0.4”
- 5mm / 0.3”
- 6mm / 0.2”
- 3mm / 0.1”
The standard flute lengths available in Syndent metal grinding drill bits are:
- 25 – 33mm / 0.9” – 1.3”
- 19 – 28mm / 0.7” – 1.1”
- 16 – 19mm / 0.6” – 0.7”
- 5 – 13mm / 0.4” – 0.5”
Shank length means the total length of a metal grinding drill bit. It includes the shaft length as well as the flute length.
The standard shank lengths worldwide are:
- 38mm / 1.5”
- 45 – 75mm / 1.8” – 3”
- 150mm / 6”
- 200mm / 8”
- 250mm / 10”
- 300mm / 12”
- 400 mm / 16” (flexible shank)
You may also enjoy the flexibility in the shank diameter of your metal grinding drill bit. This flexibility helps you to fix the burr in whichever rotary tool you possess.
These diameters are:
- 6mm or 1/4”
- 8mm or 5/16”
- 10mm or 3/8”
- 3mm or 1/8”
- 35mm or 3/32”
Besides these standard sizes, you can get customized metal grinding drill bits as per your requirement.
For customization, you can provide samples or drawings. Or, give the specifications to Syndent engineers and rest is the history.
They will make a sample and show it to you before you confirm the order. Syndent manufactures metal grinding drill bits in advance CNC machines.
You can trust Syndent. You will get the same drilling burrs in the consignment as shown in the sample.
How Do I Get Rid of Marks Made with Metal Grinding Drill Bits?
Coarse cuts like the aluminum cut or single cut metal grinding drill bits leave uneven marks after grinding.
They leave marks because they remove the metal chunks aggressively. Larger the metal chunks more will be the marks left.
Fine cut burrs give you smooth finishing. For example, diamond cut or double cut burrs are ideal to prepare a surface for polishing.
Let’s consider you need to remove a dent from your car’s bonnet. And you want to remove excess metal from a dented portion.
You use a sharp aluminum-cut metal grinding drill bit to quickly remove unwanted metal. After that, you notice uneven marks on the metal sheet.
These marks will become more prominent after polishing. In such a situation, you must change the burr with a finer one.
You will notice that the surface starts becoming smoother and mark-free as you keep grinding with a diamond cut burr.
So, Syndent metal grinding drill bits are an ideal solution to prepare a surface for polishing and make it mark-free.
How Can I Grind Corners with Metal Grinding Drill Bits?
Grinding the corner is not an easy task. You may need to grind variable angled corners. Sometimes the corners can be arced or at times they might be perpendicular.
To cope up with all these situations, Syndent gives you excellent solutions.
Let’s see how many corner types you might come across?
- Right angled corners
- Curved corners
Syndent manufactures metal grinding drill bits with plain and sharp ends. The end cut of a burr facilitates you to work on right-angled corners.
For example, Syndent cylinder-shaped metal grinding burr with an end cut is appropriate to mill perpendicular corners.
Application of Cylinder Burr with an End Cut
The image shows how conveniently you can mill a flat surface with a right-angled corner. In a single stroke, the metal grinding drill bit removes unwanted material from both sides. Thus leaving the corner flawless and unbroken.
Sometime you come across a curved corner on a flat surface. In such situations, Syndent cylinder-shaped metal grinding drill bits with a radius end are ideal.
The round end perfectly fits into the curve of the corner. In this way, you can grind the corner and the plain area simultaneously.
Syndent ball-shaped and tree-shaped metal grinding drill bit with a radius end are also appropriate to mill curved corners.
What Metals Can Be Ground with Metal Grinding Drill Bits?
Syndent metal grinding drill bits are well-known for their versatility and excellent grinding results. These files can work on ferrous and non-ferrous, hard and soft, metals and materials.
For example, you can grind:
- Stainless steel
- Wrought iron
These and many more metals can be ground with Syndent metal grinding drill bits.
Versatile Metal Grinding Drill Bit
Besides metal, you can also work on various materials, like:
Wood Carving with Metal Grinding Drill Bit
What Is the Best Way to Grind Welds with Metal Grinding Drill Bits?
Welding is an important process when you are linked to metalworking. You weld two parts together by using heat.
Why do you need to grind the welds?
When the weld cools down, you may observe weld bumps on the metal surface. These welds don’t look neat.
Grinding the welds makes the surface/corners smooth and neat. To make your welds look nice and flat you must grind them thoroughly.
Ways to Grind Welds
For this reason, you must use tools to grind the spatter. You may use:

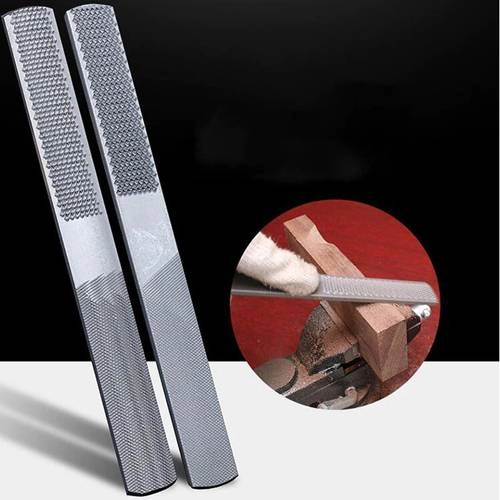

- Hand files
- Metal grinding drill bits
- Grinding discs
Manual filing is an inexpensive yet time-consuming way to grind welds. With a thorough filing and sanding, you may achieve the desired results.
Metal Grinding Drill Bits
Syndent tungsten carbide metal grinding drill bit is a quick and easy way to remove unwanted lumps on your metal piece.
You can achieve the desired results by using the appropriate size and shape of the burr.
Another way to clean the spatter is to use grinding wheels. It is also a quick and effortless way. Within seconds you can clean the surface and get a smooth and neat joint.
Metal grinding drill bit and grinding disc grind so neatly that, after polishing, you cannot locate the joint.
However, it is a common thought that,
Does grinding weaken the weld?
So, the answer is, when you grind a welded part, you remove a portion of the weld and the base material. It may minimize the strength.
However, nicely welded parts don’t get weak by grinding. By using metal grinding drill bit you only remove the excessive bumps.
Straight and uniform welds with no holes and cracks are considered as good and strong welds. Such welds don’t need much grinding.
Furthermore, a little grinding does not weaken these strongly welded joints.
How Can a Craftsman Use Metal Grinding Drill Bits?
You can create art pieces with the help of metal grinding drill bits.
Syndent grinding drill bits are not restricted to grinding only. You can also shape, deburr, carve, engrave, and cut with them.
Likewise, you can work with them on multiple surfaces. Like:
- Carve a wooden log
- Make a plaster portrait
- Engrave patterns on metal/rock
- Shape a glass
Variable shapes and sizes that Syndent manufactures give you the liberty to carve various forms conveniently.
Furthermore, you can show the world your skills by making interesting textures on variable surfaces.
In this way, you can make creative furniture, beautiful decoration pieces, and attractive wall hangings.
So, Syndent metal grinding drill bits are as beneficial for creative people as for technicians and engineers.
Adding Texture with Metal Grinding Drill Bit
